The TDA2030 is a popular pentawatt – TO-220 package Class AB audio amplifier IC designed for low-distortion, high-quality sound output. Delivering up to 14 watts of clear audio with excellent thermal and short-circuit protection, it’s ideal for DIY amplifier projects, speaker repairs, radios, and subwoofer systems.
Used in popular brands like Sayona, Von, Golden Star, and many all-in-one subwoofer systems, the TDA2030 delivers excellent audio output—especially when properly assembled and paired with the right speaker.
Whether you’re fixing an old Hi-Fi system, building a mono amp, or replacing a damaged chip in your sound setup, the TDA2030 offers rock-solid performance and reliability. Its compact TO-220 package makes it easy to solder and mount on heatsinks.
Designed by STMicroelectronics and widely used across the world, the TDA2030 runs comfortably on ±12V to ±18V dual supplies or a single 24V–36V supply, offering flexibility for both home and automotive audio setups and is now available locally in Kenya — no need to import!
Key Features of the TDA2030
- 14W RMS @ ±14V, 4Ω (typical) — Crisp audio with minimal distortion
- 8W guaranteed @ ±14V, 8Ω (DIN45500)
- Wide bandwidth: 10 Hz – 140 kHz (–3 dB)
- Low THD: Under 0.5% up to full power
- ±6V to ±18V dual supply or single 12V–36V supply
- Thermal and Short-Circuit Protection – Protects speakers and IC
- Internally current-limited: 3.5A peak output
- SOA-protected output transistors – Better than simple current limiting
- Fast recovery & stable under load
Technical Specifications of the TDA2030
| Parameter | Typical Value / Range |
| Output Power @ ±14V, 4Ω | 14W (0.5% THD) |
| Output Power @ ±14V, 8Ω | 8W (guaranteed) |
| Max Output Power @ 10% THD | 18W (4Ω) |
| Supply Voltage Range | ±6V to ±18V / 12V–36V (single supply) |
| Quiescent Current | 40–60 mA |
| Input Offset Voltage | ±2 mV typical |
| Closed-Loop Voltage Gain | 30 dB (with R1 = 22kΩ, R2 = 680Ω) |
| Input Noise Voltage | 3–10 µV (22 Hz–22 kHz) |
| Input Resistance | 0.5 – 5 MΩ |
| Thermal Shutdown Temperature | 145°C |
| Max Case Dissipation @ 90°C | 20W |
| Package Type | TO-220 (Pentawatt 5-pin) |
TDA2030 Applications
- Fixing home stereo systems – Replace damaged ICs in audio gear
- Classroom analog amplifier labs – Stable, safe, and simple
- DIY guitar or portable speakers – Compact and punchy output
- Automotive sound systems – Works with 12V supplies
- Low-cost audio booster projects – Ideal for rural setups
What’s in the Package and Recommended Usage Tips
What is in the package…
- 1 × Genuine TDA2030 Audio Amplifier IC
- (Heatsink not included – available separately)
Below are some essential usage tips…
- Use 470µF or higher capacitors on power supply rails
- Add a 100nF ceramic cap near the IC for high-frequency stability
- Mount on an aluminum heatsink with thermal paste
- For single supply designs, use capacitive output coupling
- Dual-supply designs are cleaner and eliminate the need for output caps
- Always mount on a heatsink to prevent overheating
- Use bypass capacitors (e.g., 100nF + 470µF) across power rails
- For dual IC bridge amplifier setups, match resistor values carefully
- Keep signal ground and power ground separate to reduce hum/noise
- Always use a good heatsink for continuous operation
- Ensure filtering capacitors are present at the power rails
- Use good quality components to avoid hum or distortion
- TDA2030 can replace TDA2030A, but not vice versa
Note: Only a few passive components (resistors, capacitors) are needed to complete your amplifier. You can wire the TDA2030 on a perfboard, use a ready-made PCB, or build it into your enclosure.
Downloadable TDA2030 Datasheet
Kindly click on the link ahead to view and download the TDA2030 Datasheet in PDF format… TDA2030 Datasheet PDF
TDA2030 Sample Circuit/Schematic Diagram

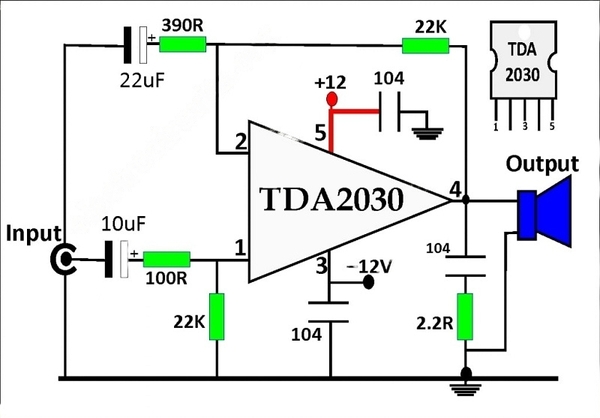

Kindly check out the sample bridge/mono version TDA 2030 circuit/schematic diagram below. This setup provides clean, clear output and is perfect for DIY stereo or subwoofer builds. I challenge you to build a TDA 2030 DIY amplifier from this image and let me know how it goes.
TDA 2030 Pinout Diagram and Pin Configuration (Top View, TO-220 Package)

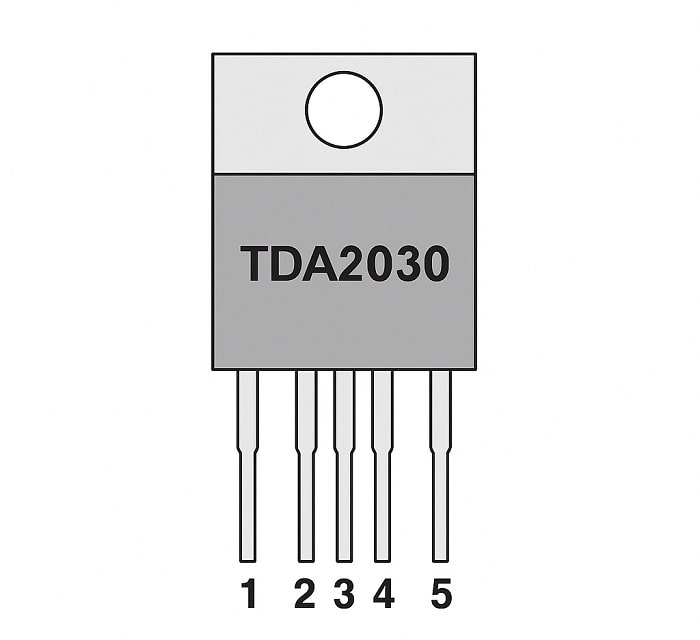

Below is a detailed diagram of the 2030 IC pinouts. This can help you when constructing a TDA 2030 DIY amplifier…
| Pin | Name | Description |
| 1 | Non-Inverting Input | Connects to the audio signal (+) |
| 2 | Inverting Input | Connects to feedback network input |
| 3 | V− | Negative supply (or GND in single-supply) |
| 4 | Output | Audio output to the Speaker |
| 5 | V+ | Positive supply |
TDA2030 Equivalents/Variants
- TDA2030A
- TDA2030AQ
(Some minor improvements in thermal behavior or output, but largely interchangeable depending on your design.)
Why We Recommend It
Having used this IC to repair various all-in-one subwoofers, I can confidently say the audio output is super clean and powerful. And the best part? You can build your amp in under an hour if you’ve got all the components ready.
What Our Customers Say
“Very clean sound! Perfect for my homemade Bluetooth speaker.” – Kelvin, Nairobi
“Repaired a JVC home theater with this chip. Worked like magic.” – Moses, Eldoret
Why Buy From Dukatronic (Kenya)?
- Locally available — no import wait times
- Trusted by repair shops, schools, and electronics enthusiasts
- Fast delivery within Kenya
- We test all components before dispatch
Power Your Audio Projects Today
Whether you’re new to electronics or an experienced tech, the TDA2030 gives you a reliable and powerful amp solution that’s easy to implement. With thousands of success stories behind it, this IC continues to be a favorite in Kenya and beyond.
Don’t risk your project with fake ICs. Get the real deal — with local support. Need help with a DIY project? Reach out or browse our integrated circuits shop for more integrated circuits and the TDA version ICs like:
