Searching for general-purpose rectifier diodes for sale? The 1N400 series diodes are the trusted choice for AC-DC rectification and reverse polarity protection. Designed for general-purpose rectification, these diodes handle continuous currents up to 1 ampere while protecting circuits from reverse voltage damage.
Whether you need a low-voltage 1N4001 diode in Kenya or a high-voltage 1N4007 rectifier diode, Dukatronic Electronics Shop Kenya has you covered. Built for reliability, each diode supports up to 1A continuous current and handles surges of up to 30A, making it ideal for both commercial and DIY projects.
From the low-voltage 1N4001 (50V) to the high-voltage 1N4007 (1000V), the series covers a wide range of applications, making it a go-to choice for hobbyists, technicians, and engineers.
Key Features of the 1N400 series diodes
- Voltage Range: 50V to 1000V
- Forward Current: 1A continuous (3A max at low duty cycles)
- Surge Current Handling: Up to 30A

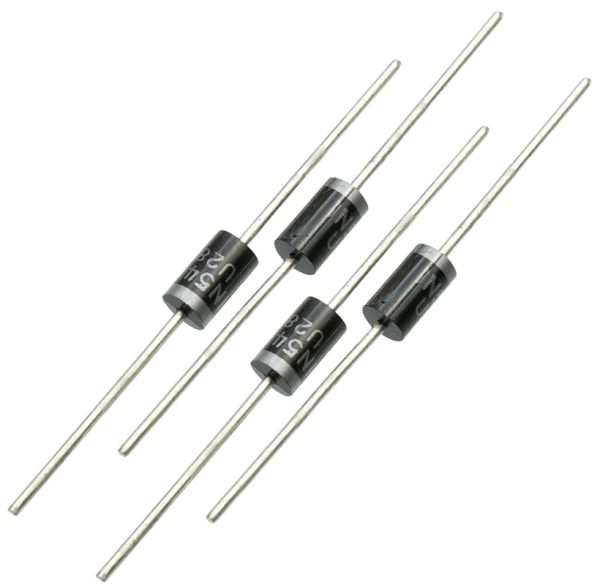

- Package Type: DO-41 (axial leads)
- Low Forward Voltage Drop: Approximately 0.7V at 1A
- Operating Temperature: -65°C to +150°C
- Reliable glass-passivated junction
- RoHS Compliant
- High surge current capability
- Reliable in various environmental conditions
Applications of the 1N400 series diodes
- AC to DC conversion
- Power supply circuits
- Protection circuits
- Battery charging systems
- Consumer electronics
- Inverters
- Led Drivers
- Motor Drivers
- Reverse Polarity Protection
Technical Specifications of the 1N400 series diodes
| Model | Max Reverse Voltage (V<sub>RRM</sub>) | Average Forward Current (I<sub>F(AV)</sub>) | Surge Current (I<sub>FSM</sub>) | Typical Applications |
| 1N4001 | 50V | 1A | 30A | Low-voltage AC-DC rectifiers |
| 1N4002 | 100V | 1A | 30A | Standard low-voltage circuits |
| 1N4003 | 200V | 1A | 30A | Moderate voltage rectifiers |
| 1N4004 | 400V | 1A | 30A | Universal power supplies |
| 1N4005 | 600V | 1A | 30A | Industrial control systems |
| 1N4006 | 800V | 1A | 30A | High-voltage rectification |
| 1N4007 | 1000V | 1A | 30A | General high-voltage applications |
Why Choose the 1N400 Series?
- Trusted Quality: Millions of devices globally rely on the 1N400x series.
- Versatile Range: Perfect for both high and low-voltage applications.
- Compact Size: Fits easily into a wide range of circuit boards and projects.
- Cost-Effective: High performance without the high price tag.
Why Buy from Dukatronic Store?
- Wide Selection: We stock a variety of electronic components ready for fast delivery.
- Fast Shipping: Same-day dispatch for orders made before 3 PM.
- Quality Guarantee: Every diode is quality-tested before shipping.
- Expert Support: Need help? Our tech team is available to assist you with selection and application advice.
- Competitive Pricing: Affordable electronics without compromising on quality.
Package Information and contents
- Package Type: DO-41 Axial
- Dimensions: Approx. 5.2mm x 2.7mm body with 25mm leads
- Weight: ~0.4g per diode
- 1 x Selected 1N400x diode model
- [Optional: Multipacks of 5, 10, 50, or 100 available]
Available Variations (Select Model)
You can choose your preferred diode from the following models:
- 1N4001 – 50V
- 1N4002 – 100V
- 1N4003 – 200V
- 1N4004 – 400V
- 1N4005 – 600V
- 1N4006 – 800V
- 1N4007 – 1000V
We also have the high-rated 1N540 Series Diodes…
Power Your Project by Buying 1N400 Diodes Online Today at the Dukatronic Store!
Ready to power your projects with dependable rectification? Select your model now and buy from the Dukatronic Store! Enjoy fast shipping, genuine parts, and expert customer support. Our 1N400 series diodes are quality-tested to ensure excellent performance and reliability. Ideal for both DIY electronics projects and professional repair work.
